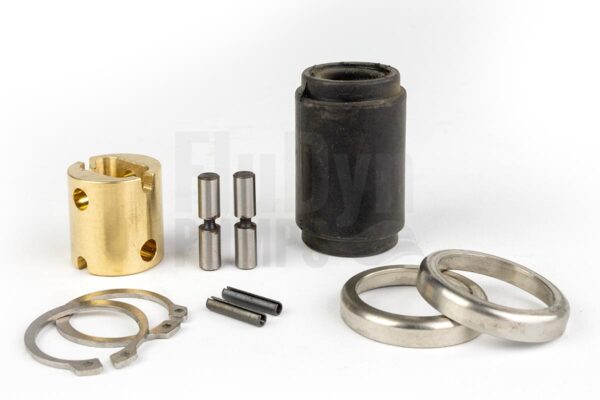

The picture shows the individual parts of a joint for Bornemann EL 236 progressing cavity pumps / mono pumps. To the rear left you can see a brass-coloured joint bushing, two metal joint bolts and to the rear right a black joint sleeve. These parts stand vertically in front of the white background. In the front row you can see two horizontal circlips on the left, two black cycloidal sleeves in the middle and two joint protection sleeves on the front right.

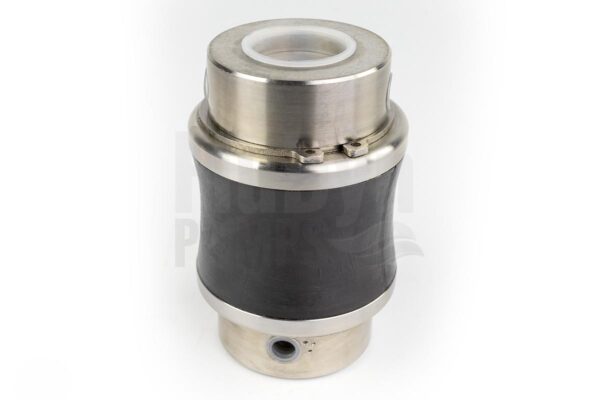

The picture shows an assembled joint for Bornemann EL 236 progressing cavity pumps. It is made of metal and stands vertically on a neutral white background. In the middle you can see the black joint sleeve. The openings for the set pins are sealed with white caps on both sides.
  1. The picture shows the individual parts of a joint for Bornemann EL 236 progressing cavity pumps / mono pumps. To the rear left you can see a brass-coloured joint bushing, two metal joint bolts and to the rear right a black joint sleeve. These parts stand vertically in front of the white background. In the front row you can see two horizontal circlips on the left, two black cycloidal sleeves in the middle and two joint protection sleeves on the front right.
  2. The picture shows an assembled joint for Bornemann EL 236 progressing cavity pumps. It is made of metal and stands vertically on a neutral white background. In the middle you can see the black joint sleeve. The openings for the set pins are sealed with white caps on both sides.

Joint EL 236

We supply the joint in individual parts as it is mounted in stages on the shaft ends for this type of pump.

SKU: BEL216-236-1 Categories: , , ,

Joint for Bornemann EL 236 progressing cavity pumps / mono pumps

Material: Made of stainless steel. Also available in special versions, e.g. for use in explosive environments. – Please contact us!

Drawing position: 216

Note: For this small pump size there are no pre-assembled joints. The individual joint parts are mounted on the shaft ends one after the other.

Our tip: Joints have a long lifespan. However, like all moving parts, they are consumable and will wear out over time. Your progressive cavity pump has two joints that wear at approximately the same rate. We recommend replacing both joints at the same time.
