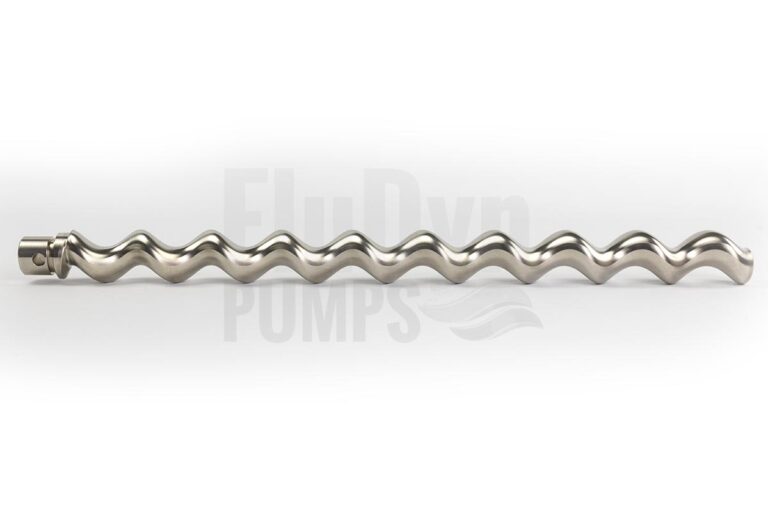

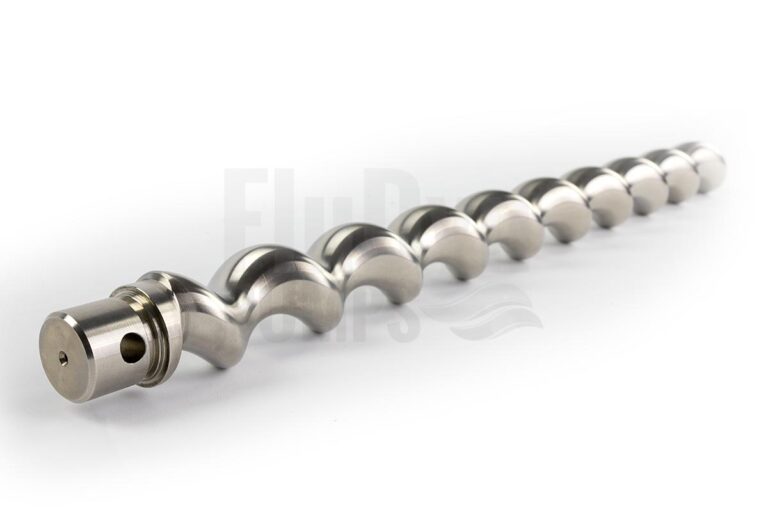

Rotor for E4L 600 mono pumps

Suitable for Fludyn BE4L 600 and ITT-Bornemannn* E4L 600 mono pumps (progressing cavity pumps).

Please select the option you require. We recommend a rotor made from high-quality C45 steel, which is also coated with a hard chrome layer. It is more robust than a rotor made of hardened 1.2436 steel.

Drawing position: 10

We have only included the more common variants here. If you need a special version or are unsure, simply send us a quick message here or select “unknown” as the material.

Our recommendation: Please order the ‘mounting kit rotor’ as well. It contains a few small parts that you should replace when attaching the new rotor to the joint.

Check the condition of the joints and replace the stator at the same time as the rotor. This usually wears out faster than the rotor and should be replaced now at the latest. It is best to purchase both from a single source. This ensures that the rotor and stator are properly matched!
